Part No. 109422
Our new Fox Body/SN95/New Edge Mustang Crossmember is designed specifically for those looking to upgrade their Mustangs engine to an LS based power plant and install a 4l80 or TH400 Transmission. This crossmember is designed to have a low profile while accommodating the larger dimensions of the LS and transmission.
This is designed to be used with our Fox Body/SN95/New Edge Mustang Subframe connector kit (109424). This can also be used with other subframe connectors provided they follow the same lines as the factory subframe.

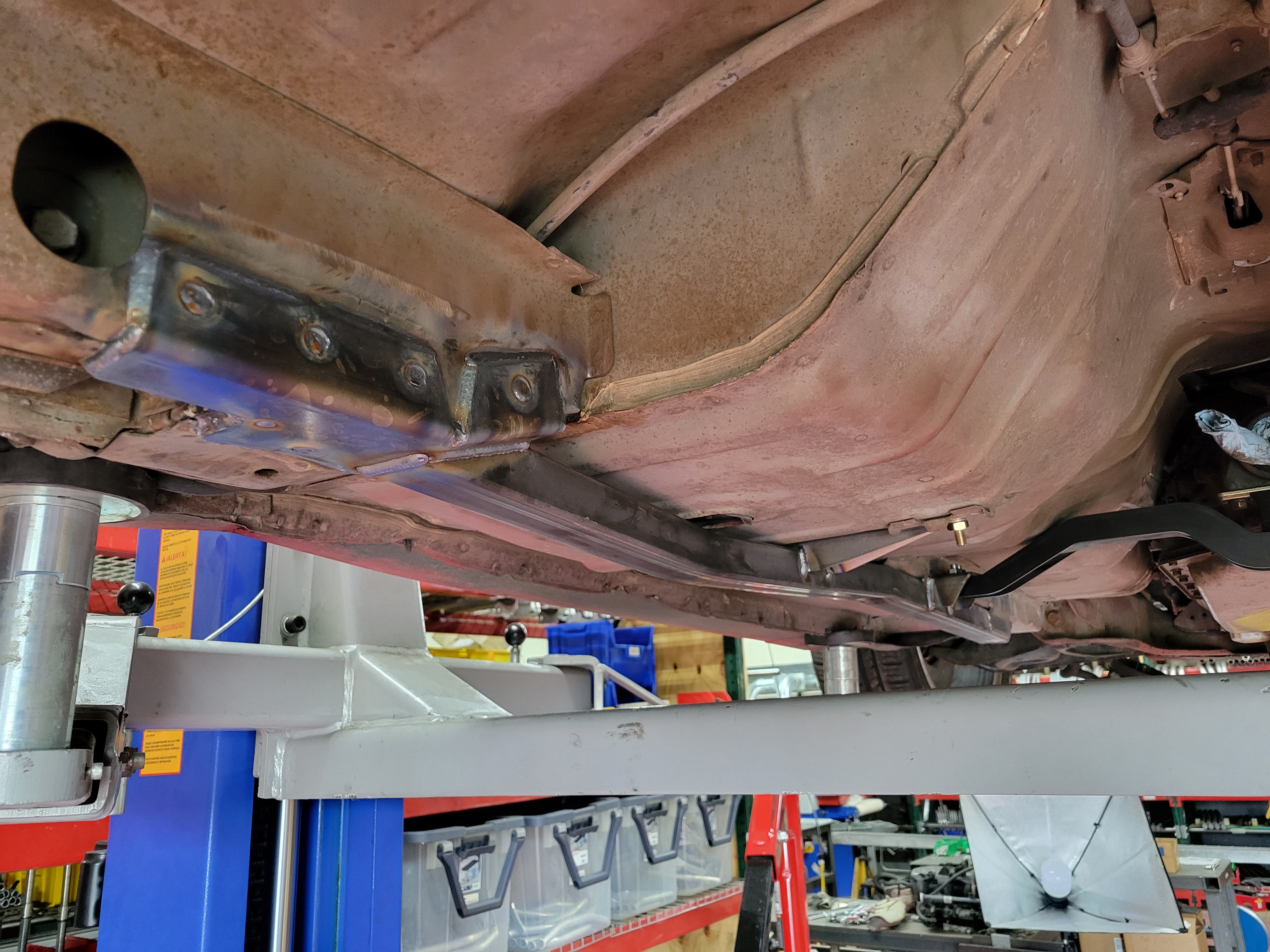

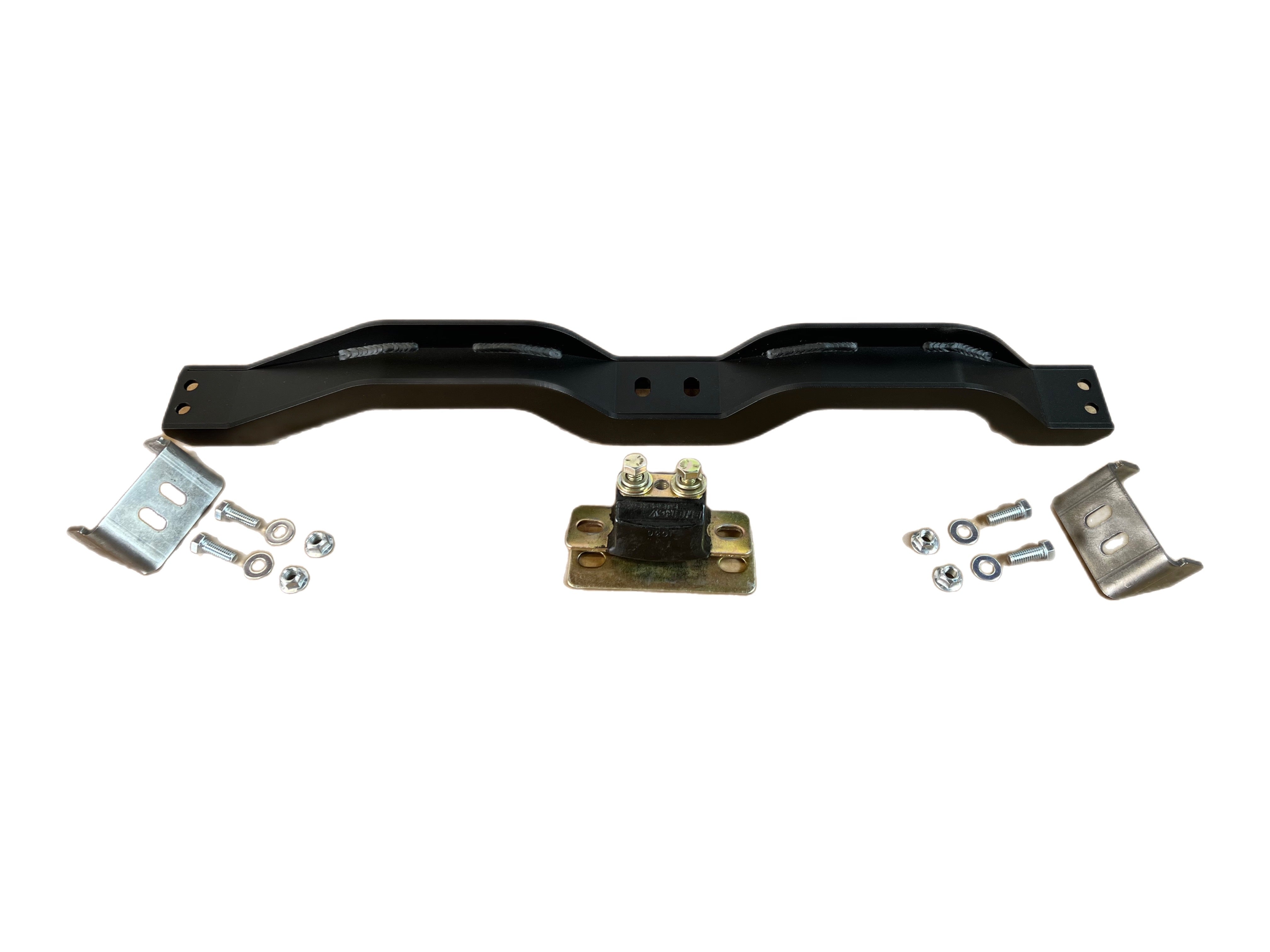

This product comes with two weld-on mounting tabs (to be welded to subframe connectors), transmission crossmember, and a GM style polyurethane transmission mount.

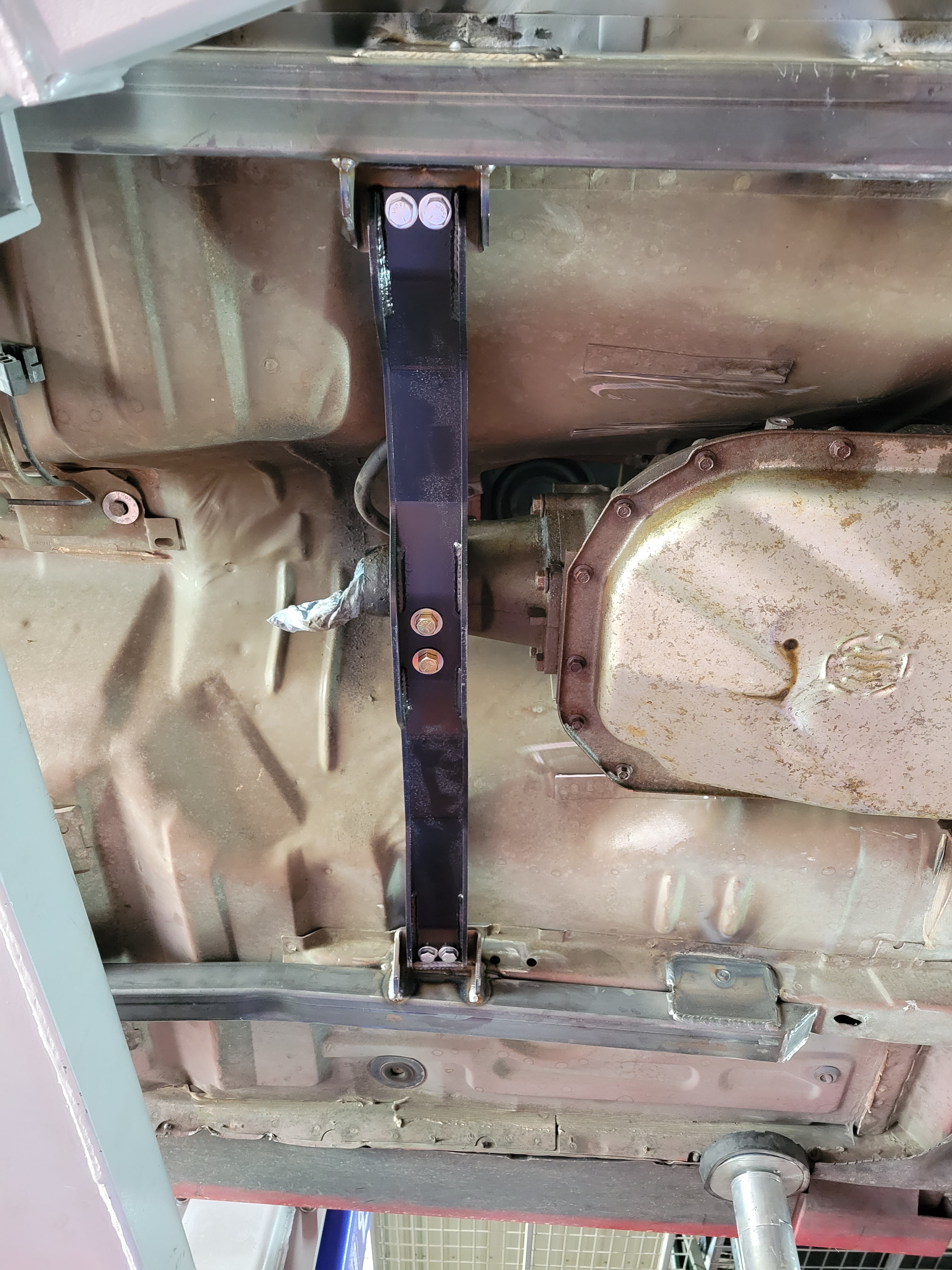

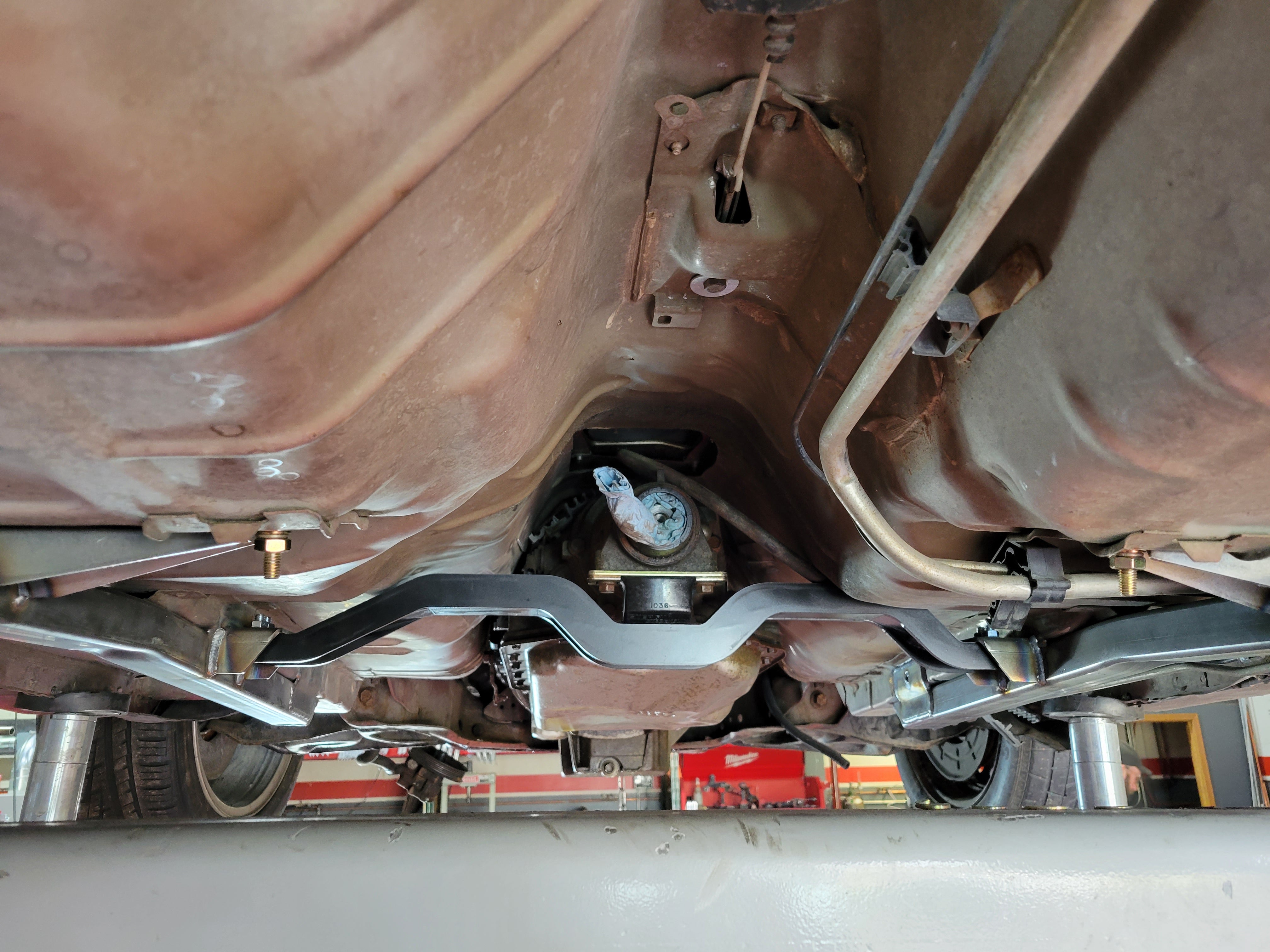

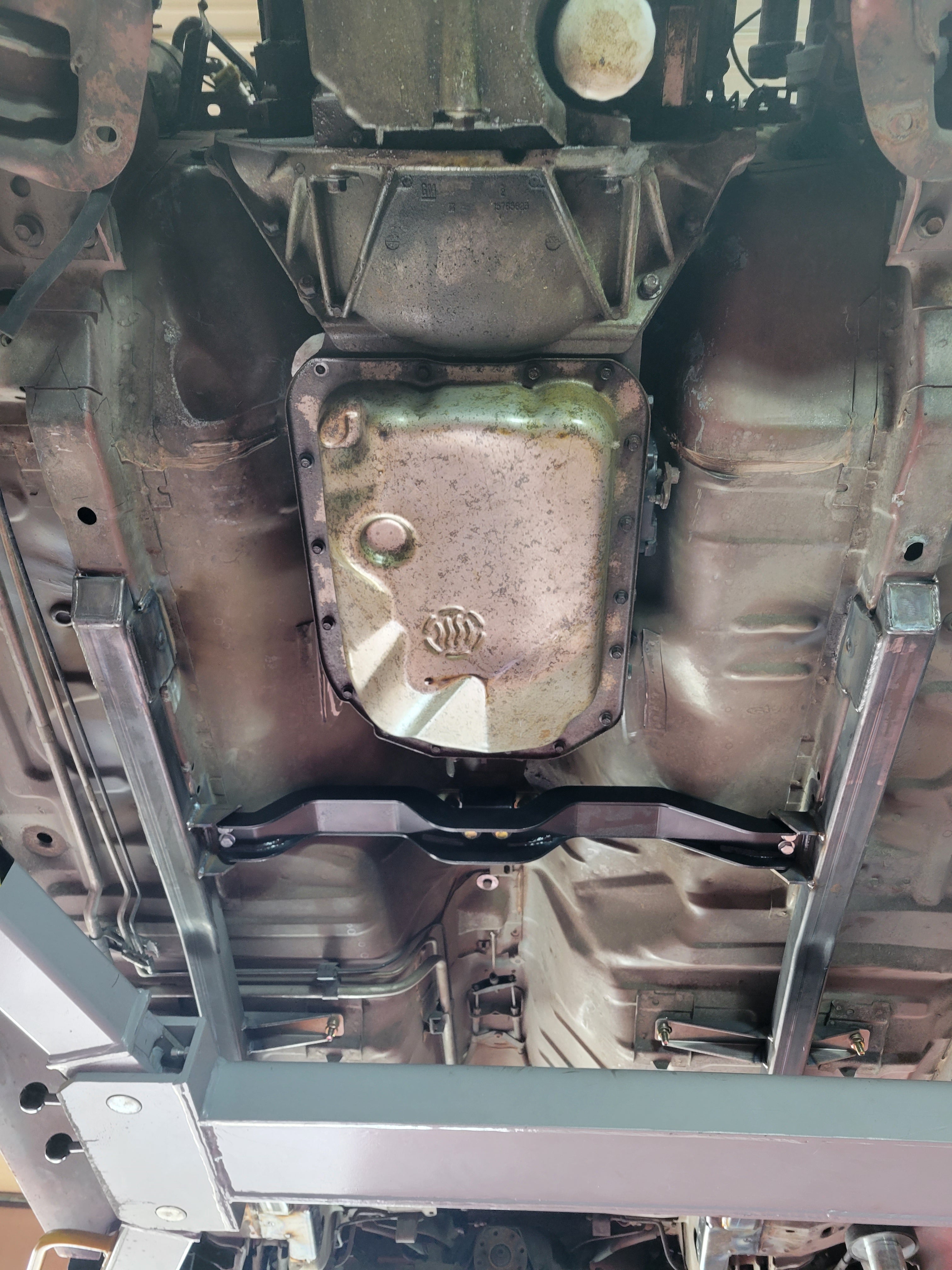

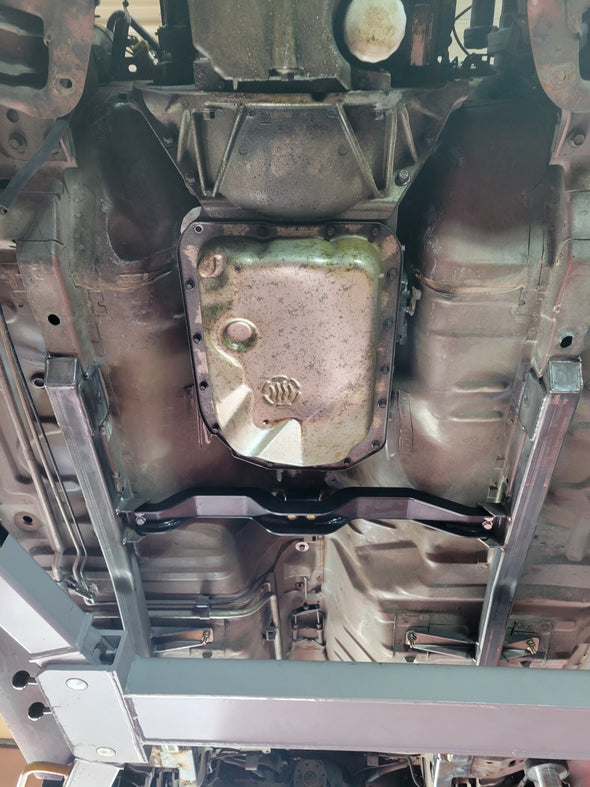

109422 LS 4L80-TH400 Trans Crossmember Install
If you would like to order the Subframe Connectors and or the LS motor Mount Kit we have combination kits available as well.
109425- 96-04 Mustang LS Motor Mount and Crossmember Kit
109426- 96-04 Mustang LS Motor Mounts, 4L80-TH400 Trans Crossmember, and Subframe Connector Kit.
109428- 79-95 Mustang LS Motor Mounts & 4L80-TH400 Trans Crossmember kit
109427- 79-95 Mustang LS Motor Mounts, 4L80-TH400 Trans Crossmember, and subframe connector kit.
